Transitive Robotics is saying a brand new main model of Transitive, the open-source framework for full-stack robotics. Model 2.0 provides vital new integrations and options: storage of historic and time-series knowledge in ClickHouse, visualization in Grafana, and customized alerting through Alertmanager. Along with the discharge of some capabilities, just like the free Well being Monitoring functionality, robotics corporations already use these options, offering added worth to robotics corporations with rising fleets.
Fleet operation at scale
Till now, Transitive has been very a lot targeted on transactional options wanted for the operation of robotic fleets. This contains in style capabilities like WebRTC Video streaming, Distant Teleop, and ROS Device. These capabilities are significantly empowering to robotics corporations that haven’t but deployed greater than 50 robots. Transitive’s open-source MQTTSync knowledge protocol, its realization of full-stack packages, and the built-in fine-grained authentication and authorization options shaped the muse to develop such transactional capabilities effectively and reliably.
However as fleets develop, so do the challenges in monitoring and working. Firms want instruments that transcend the direct type of one operator engaged on one robotic at a time, however present each longitudinal and historic views of the fleet. Equally, passive monitoring and alerting have to step by step exchange energetic monitoring by (distant) operators. Supporting robotics corporations on this second chapter of development was the purpose on this new main launch, whereas nonetheless staying true to Transitive’s philosophy of embeddability, ease of use, and fine-grained, namespaced entry management.
Retailer: ClickHouse
From all the nice open-source databases to select from, Transitive Robotics discovered ClickHouse to be probably the most versatile and highest performing for the varieties of robotics knowledge corporations are likely to ingest, analyze, and visualize. ClickHouse is a extremely environment friendly, columnar knowledge retailer that’s already being utilized by many AI and robotics corporations, together with OpenAI, Anthropic, and Tesla. Its column-based knowledge format is well-suited for on-disk compression in addition to temporal evaluation of robotics knowledge.

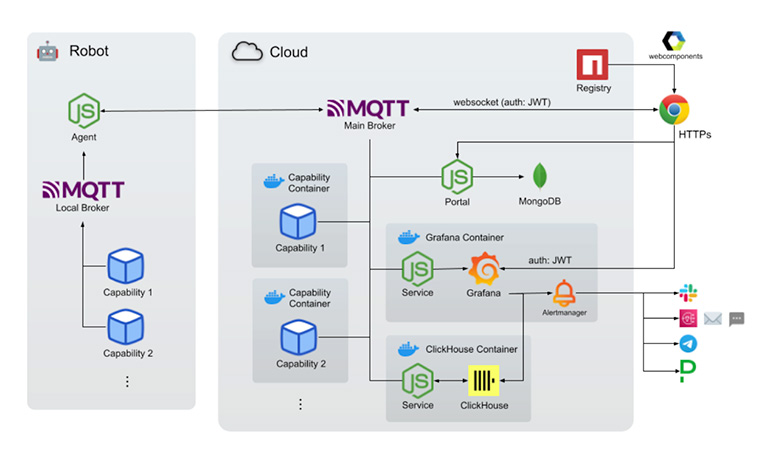

Transitive 2.0 integrates ClickHouse alongside a number of dimensions. First, the Docker Compose file contains and configures a ClickHouse occasion, including it in each the hosted answer on transitiverobotics.com in addition to any self-hosted deployments. Second, Transitive routinely provisions per-Transitive-user accounts in ClickHouse and provides the mandatory ROW POLICYs to increase Transitive’s namespace-based entry management. Third, for builders, it provisions a delegated ClickHouse database for every functionality in addition to a number of comfort features within the @transitive-sdk/clickhouse npm bundle to put in writing to and question the database. This additionally features a deep integration with MQTTSync itself.
Functionality builders can now register particular MQTT matters to be saved within the database, they usually can simply as simply question this historical past, e.g., for easy visualizations. The Well being Monitoring functionality, as an example, makes use of this to render sparkline plots of well being sensor histories from ROS diagnostics straight within the UI parts that customers can embed in their very own internet dashboards:
Equally, the robot-agent itself shops and visualizes the final 24 hours of heartbeats from robots within the fleet, making it straightforward to see on-line and offline intervals:
Visualize: Grafana
Grafana is a well-liked and highly effective framework for creating visualizations and data-driven dashboards, precisely what robotics corporations have to get an outline of the well being and operational standing of their fleet. It is usually well-suited for diving deeper into this knowledge, particularly for plotting and analyzing time collection.
Transitive now integrates a Grafana occasion that makes use of the aforementioned ClickHouse accounts as knowledge sources. Just like the built-in ClickHouse occasion, it’s auto-provisioned to incorporate a separate group for every Transitive consumer, each within the hosted and self-hosted deployments.
Entry management is configured to reflect the identical rules as used elsewhere in Transitive: orthogonal per-user/per-device and/or per-capability permissions. Amongst them is the power to offer short-term entry to capability- and device-specific plots of historic MQTT knowledge, all encoded in a flexible, dynamic URL. This URL, whose capabilities may be programmatically generated on the fly, is used to embed Grafana visualizations or to hyperlink to a full dashboard that the consumer can use to discover their knowledge additional. This instance exhibits its use for visualizing ROS diagnostics knowledge, plotting GPU temperature, and utilization.
Transitive capabilities can additional provision capability-specific property straight into Grafana now, to offer customers with customized dashboards and alert templates that the aptitude creator deems helpful for working with the info collected by the aptitude.
Alert: Alertmanager
Included with Grafana is the highly effective Alertmanager, the identical one utilized by Prometheus. It operates like a switchboard: knowledge in, notifications out, with clever routing within the center. Its integration into Transitive signifies that customers can outline advanced SQL queries in opposition to their MQTT and capability-specific knowledge in ClickHouse to set off alerts. Customers can outline insurance policies for notifying particular “contact points” similar to Slack, PagerDuty, or customized webhooks when these alerts set off.
The Well being Monitoring functionality demonstrates one use of this. It routinely provisions an alert template that customers can copy and configure to obtain notifications when a robotic has develop into unhealthy and will require consideration.
Strive it out
Present Transitive customers will see these options seem within the capabilities they use. In Well being Monitoring, for instance, they’ll see all of the above-mentioned plots and options, permitting them to discover their latest ROS /diagnostics historical past, visualize it, outline customized dashboards round it, and configure alerts. New customers can create a free account and set up these capabilities on their robots. The documentation has been up to date with extra particulars about these new options, together with easy methods to straight entry the info in ClickHouse and Grafana.
Those that choose to self-host Transitive in their very own cloud, on-prem, or straight on their robots for offline use, can observe Transitive’s directions for self-hosting to carry up the Transitive stack of their dev setting. There, they will additionally begin writing their very own capabilities, which they will undergo the Transitive functionality retailer in the event that they wish to.
In regards to the Creator
Christian Fritz is the founder and CEO of Transitive Robotics.
He beforehand served because the VP of Software program at Savioke, maker of the Relay supply robotic for resorts and hospitals, the place he helped scale the fleet from 5 to over 100 robots working on three continents.
Christian holds a PhD in synthetic intelligence (pc science) from the College of Toronto and has authored over 40 publications and 17 patents.
