Based mostly in Westminster, CA, TL Aerotek Inc. is a small machine store that focuses on making precision parts for aerospace producers. In simply 5 years, the corporate grew sufficient to maneuver from its authentic 600-square-foot area to a brand new store with seven machine instruments unfold throughout greater than 2,000 sq. toes.
Clearly, enterprise has been good, with orders flowing in sooner than proprietor, Tai Le, might fill them. He wished to maintain up with accelerating demand and proceed constructing his enterprise, however he didn’t wish to cope with labor uncertainty.
Searching for an answer, Tai consulted long-time provider, Broaden Equipment, a family-owned enterprise in Chatsworth, CA, that builds machine instrument programs.
Tai had been working with Broaden Equipment for a number of years, utilizing a variety of Broaden milling machines, most of which use controls from Mitsubishi Electrical Automation.
Over time, Tai has slowly changed all different machine manufacturers with Broaden and Mitsubishi Electrical merchandise. “Both companies give me what I need: super support, performance and reliability,” he says.
After working carefully with Tai, Broaden’s common supervisor, Ravjeet Singh, prompt automating the method of loading and unloading machines utilizing Mitsubishi’s LoadMate Plus system.

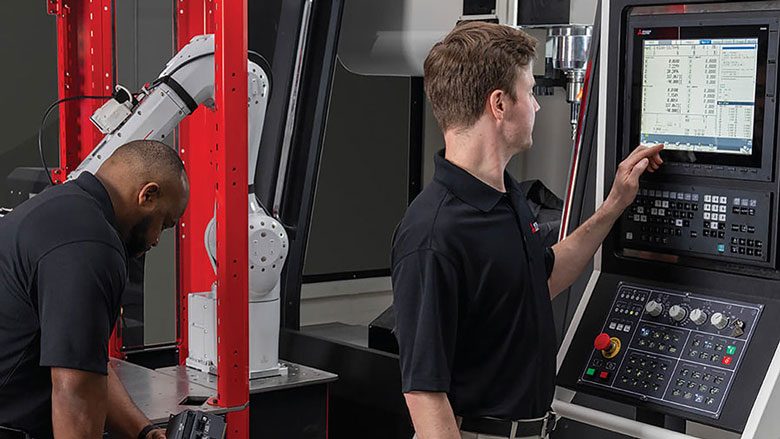

Broaden Equipment developed and built-in a 4-foot-by-4-foot machine-tending cell geared up with a Mitsubishi RV20 six-axis robotic. Picture courtesy Mitsubishi Electrical Automation Inc.
LoadMate Plus is a standardized robotic system for machine tending. Broaden developed and built-in a 4-foot-by-4-foot cell with a Mitsubishi RV20 six-axis robotic. The cell simply related to one in every of Tai’s machine instruments, the GenMill 5X-12. As a result of this five-axis milling system was already geared up with a Mitsubishi CNC, getting every thing to speak was straightforward.
Searching for fast solutions on meeting and manufacturing matters?
Attempt Ask ASM, our new good AI search instrument.
Ask ASM
“The LoadMate Plus has been specifically created for easy setup and use,” says Mitsubishi Electrical account supervisor David Contreras.
Plug-and-Play Machine Tending
The LoadMate Plus is a compact, moveable robotic cell able to dealing with payloads as much as 20 kilograms with reaches as much as 1,388 millimeters. A secure, self-contained cell, the LoadMate Plus will be geared up with a wide range of Mitsubishi six-axis robots, together with the RV7, RV-8, RV-13 and RV-20 collection.
The cell was designed for plug-and-play operation. An Ethernet connection is all that’s required to combine the cell with Mitsubishi’s M8 Collection CNC.
As well as, the system gives straightforward programming of the robotic due to direct robotic management with CNC software program. Meaning Tai can program and modify on the fly utilizing menus and G-code from the identical display used for the machine instrument. There’s no want for robotic programming expertise or a educate pendant.
The cell can be utilized for extra than simply tending machine instruments. It can be deployed in pick-and-place, inspection, meeting and packing purposes.
With the LoadMate Plus, TL Aerotek’s milling machine can run unattended for twenty-four hours, tripling regular output. Picture courtesy Mitsubishi Electrical Automation Inc.
To make sure exact placement of the half to be milled, the robotic works with a versatile quick-change pallet system from Schunk. “Working with Tai, we chose to focus on a pallet system that allows the robot to pick up parts from the same location each time, so you don’t have to reprogram the robot from part to part,” says Singh. “We chose Schunk for our pallet system because of its rigidity, accuracy and durability.”
It solely takes quarter-hour to put 10 blanks on the loading cabinets. From there, the system mechanically hundreds and unloads the machine. Meaning Tai not has to face by to take away a completed half and cargo new materials. The LoadMate Plus does all of it and can preserve doing it till the loading shelf is empty. In reality, after implementation at TL Aerotek, the system ran unattended for twenty-four hours, tripling regular output. Tai is now capable of full a month’s quota in only a week.
“I like to be self-sufficient. But because my machines are supported by Expand and Mitsubishi Electric, I know that if I do need help, I’ll have it,” says Tai. “However, because the machines and controls are so good, I don’t think I’ll need that help too often.”
Tai was so happy along with his elevated productiveness that he ordered two new five-axis machines to interchange two of his four-axis models. The brand new machines will face one another. Between them can be a brand new LoadMate Plus. Its robotic can have an extended attain, making it attainable to load each machines with one cell.
“Tai Le is a great example to other small outfits,” says Singh. “He knows that if you don’t invest, you can’t grow your business.”
