Like all producers right now, wiring harness outlets are confronted with challenges starting from provide chain points and rising materials prices to discovering and retaining staff. Thankfully, a wide range of handbook, semiautomated and absolutely automated instruments and gear can be found to chop, strip, crimp, and assemble cable and wire
Right here’s a have a look at a number of the newest merchandise.
Taping Machine Can Course of Advanced Wire Harnesses

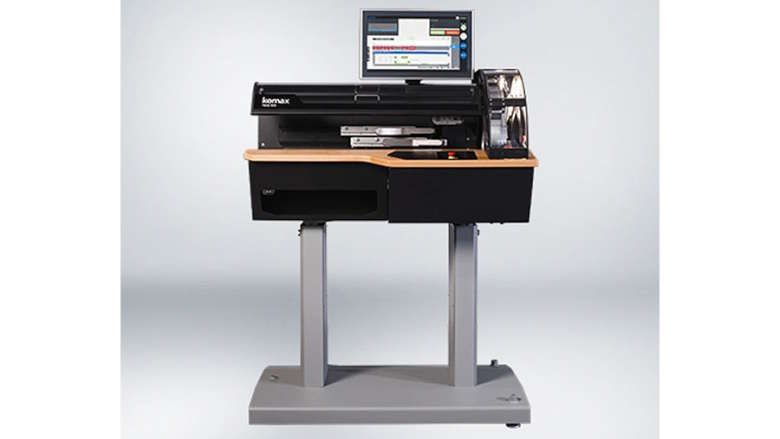

The Rotar 500 Collection taping machine can course of advanced wire harnesses utilized in functions resembling automotive batteries, doorways and mirrors. Programming is intuitive and will be carried out both immediately on the machine or at a distant workstation. For max security, the right-flush winding head prevents the wire from being blocked. The processor hood opens and closes mechanically and detects dealing with errors. The machine can settle for tape rolls as much as a 220 millimeters in diameter.
Komax Group
www.komaxgroup.com
Picture courtesy of Daniels Manufacturing Corp.
Pneumatic Banding Device Is Operator-Pleasant
The DBS-1200 is designed to put in 0.25-inch M85049/128 welded buckle bands. It may be used with both M85049/128-5 flat or M85049/128-6 coiled bands. The instrument tensions and cuts the band, leaving an prolonged cut-off tab. Reduce-off blades are replaceable. The PBT1200 pneumatic banding instrument can be out there for improved ergonomics in high-volume manufacturing environments. The DBS-CG1 laboratory calibration instrument permits operators to measure the precise rigidity produced by the instrument.
Daniels Manufacturing Corp.
Picture courtesy of Brady Worldwide Inc.
Cordless Desktop Label Printer Is Light-weight
The i4311 transportable industrial desktop label printer options an all-day battery and an ergonomic carrying deal with. It could actually course of labels starting from 0.25 to 4 inches broad. The machine weighs solely 13 kilos and makes use of a fast-charging battery that may print as much as 5,000 labels on a single cost. LabelSense expertise mechanically detects and calibrates supplies to eradicate handbook setup, trial and error, and materials waste. The transportable machine permits customers to print labels from telephones, tablets or laptops.
Searching for fast solutions on meeting and manufacturing matters?
Attempt Ask ASM, our new good AI search instrument.
Ask ASM
Brady Worldwide Inc.
www.bradyid.com
Picture courtesy of DIT-MCO Worldwide
Benchtop Tester Is Compact and Moveable
The Mannequin 2115 delivers a full 1500-volt isolation and 2-amp continuity check stimulus. An elective AC breakdown check offers a 1,000 VAC check stimulus, assembly all check necessities. The unit’s compact dimension makes it excellent for a lot of benchtop or portableapplications. The guts of the system is the grasp switching unit (MSU), which accommodates all of the management and instrumentation electronics, and as much as 1,000 check factors of switching. This single chassis is a complete check system. If extra check factors are wanted, enlargement switching items (ESUs) will be added. Every MSU and ESU suits into a typical rack mount enclosure.
DIT-MCO Worldwide
www.ditmco.com
Picture courtesy of Schleuniger Inc.
Motorized Pull-Drive Tester Is Extremely Correct
The motorized PullTester 320 can be utilized with automated crimping machines to measure pull-off forces for wire terminations. The versatile machine has three individually calibrated measuring ranges of 100, 200 and 1,000 newtons, and pulling charges of 25-, 50- and 100-millimeters per minute. A speed-controlled motor ensures constant pull charges that may’t be assured with hand-actuated or pneumatic pull-test gadgets. A regular 12-position holder accommodates all kinds of terminals.
Schleuniger Inc.
www.komaxgroup.com
Picture courtesy of ETCO Inc.
Insulated Terminals Are Flame-Retardant
Flame-retardant, absolutely insulated terminals will be color-matched to satisfy distinctive branding, security, meeting or area service necessities. The disconnects are stamped from a high-temperature alloy and have a nylon insulator that is available in normal black or white colours. If there’s a malfunction, the insulator collapses on itself and safely holds. All merchandise are made to UL and NEMA specs, and provided in strip type with an open barrel “F” crimp connector. They’re rated as much as 150 C.
ETCO Inc.
www.etco.com
Picture courtesy of Weidmuller USA
Versatile Device Cuts and Strips Wire
The swifty CS is a compact, all-in-one instrument for chopping and stripping wire. It slides onto any uninsulated screwdriver with a 3.5-millimeter blade diameter. Finish customers minimize wire on one facet of the attachment and strip it on the opposite facet. The instrument strips PVC-insulated fine-stranded and strong conductors as much as 14 AWG. It could actually minimize copper conductors which can be single-stranded as much as 16 AWG and fine-stranded as much as 14 AWG. An ergonomic grip is flexible to be used with both right- or left-handed customers. The instrument is good for screw and spring clamp terminals, making certain a quick and environment friendly workflow.
Weidmuller USA
www.weidmuller.com
