Cured-in-place gaskets are utilized in myriad functions. They seal the housings on gear reducers and the chain-case covers on snowblowers. They are often present in pipe flanges, drum lids, electrical enclosures, lighting fixtures, air filters, stereo audio system, home equipment, transmissions, crankcases, vacuum pumps, axle covers and gasoline tanks.
In contrast with die-cut or molded gaskets, cured-in-place gaskets have many benefits. As a result of they’re distributed fairly than positioned, cured-in-place gaskets simply conform to surfaces with three-dimensional geometries. Equally, cured-in-place gaskets fill tiny imperfections within the half surfaces that might develop into leak-paths with stable gaskets. By filling these gaps, cured-in-place gaskets guarantee 100% contact between the mating surfaces.
Though cured-in-place gaskets will not be thought of structural adhesives, they do present delicate adhesion between the mating surfaces. This unitizes the meeting and limits relative movement between the components, which helps stop gasket failure.
Lastly, cured-in-place gaskets are cheaper than stable gaskets. It’s simpler to automate the applying of liquid gaskets than stable gaskets. Reject charges could also be lowered as a result of the gasket may be extra exactly positioned. Stock prices are additionally decrease. A barrel of adhesive takes up much less house than cartons of rubber gaskets. And, if the product design adjustments, the producer isn’t caught with out of date components.

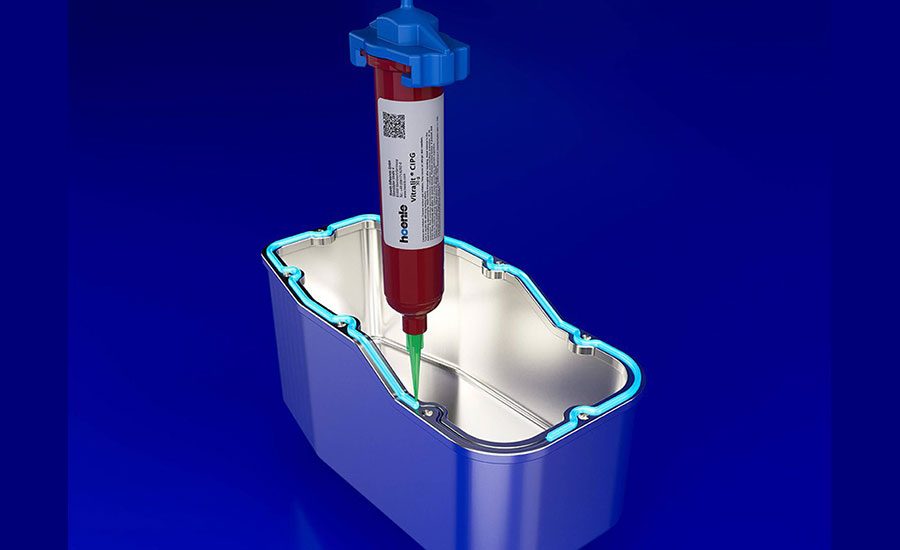

One of many latest cured-in-place gasket supplies in the marketplace is Vitralit CIPG 60200 from Hoenle Adhesives Americas Inc. This UV-curing polyacrylate materials is particularly engineered for high-performance digital housings in automotive and electrical car functions. Freed from carcinogenic, mutagenic or reprotoxic substances, this polyacrylate materials may be exactly utilized with automated shelling out expertise and robots. This ensures correct bead geometry and wonderful dimensional stability within the uncured state.
To help in inspection, the fabric fluoresces blue beneath ultraviolet gentle.
Speedy curing beneath UV gentle (wavelengths of 365 or 405 nanometers) permits brief cycle occasions and speedy dealing with power. The very best curing outcomes are achieved with Hoenle’s UVA Print 100-200 HPV curing system, which permits quick and tack-free curing.
On the lookout for fast solutions on meeting and manufacturing matters?
Strive Ask ASM, our new sensible AI search instrument.
Ask ASM
As soon as cured, Vitralit CIPG 60200 ensures dependable joint tightness upon compression, successfully stopping leakage of fluids and gases. Even beneath elevated temperatures, the gasket maintains excessive elastic restoration. A compression set of solely 15 p.c after 24 hours at 150 C demonstrates its sturdy repulsive drive and long-term sealing functionality. The operational temperature vary extends from -40 C to above 150 C.
The cured gasket reveals excellent chemical resistance in opposition to typical automotive media, together with engine oil, transmission fluid, and water-glycol mixtures. Low outgassing traits make the fabric significantly appropriate for delicate digital parts. The product complies with the UL 94 HB flammability commonplace for polymeric supplies.
Because of its excessive temperature and mechanical resistance—beneath each static and dynamic hundreds—the fabric represents a dependable different to stable gaskets and silicone sealants, significantly in demanding automotive environments.
In EVs, the fabric is good for sealing digital management models, battery disconnect models, on-board chargers and cell module controllers. As soon as cured, it offers speedy safety in opposition to mud, moisture and harsh chemical substances.
As well as, the fabric is particularly designed for upkeep, restore and overhaul eventualities. Not like standard single-use gaskets, the cured materials may be reused after disassembly, permitting housings to be opened and resealed with out gasket substitute. This reduces service prices, minimizes waste, and improves total system sustainability.
For extra info on cured-in-place gasket supplies, click on www.hoenle.com or go to the corporate’s sales space at The Meeting Present, which might be held Oct. 27-29 on the Donald E. Stephens Conference Heart in Rosemont, IL.
Moreover adhesives, shelling out and curing expertise, you’ll discover greater than 200 suppliers of automation, fastening instruments, robotics, software program, presses, workstations, and take a look at and inspection gear.
