Laser welding is a quick, exact becoming a member of course of that’s used to assemble a wide range of plastic components. Functions embrace every thing from ADAS sensors to water pumps. Laser welding can be used to mass-produce many kinds of medical units, together with catheters, diagnostic cartridges, injector pens, insulin pumps, syringes and tubing.
Quick, environment friendly and exact, laser welding permits machine miniaturization, avoids the usage of adhesives, eliminates dangerous vibration related to different welding strategies and delivers airtight sealing. The versatile meeting course of can rotate round complicated components in three dimensions to make sure high quality.
The laser welding market will develop 8 p.c yearly between now and 2031. Demand is being pushed by an elevated want for clear and sturdy parts which might be turning into smaller and extra complicated.
Mild Work
By-transmission laser welding (TTLW) entails passing laser power by means of two plastic layers. One layer is clear to the laser beam’s particular wavelength, whereas the opposite absorbs the laser power and causes melting. The 2 polymers being joined ought to be suitable, however shouldn’t have to be the identical sort of resin.
Within the TTLW course of, a managed quantity of laser power is delivered to a exact location to warmth the absorbent plastic layer, inflicting it to soften. As a result of the warmth generated by the laser is rigorously confined, laser welding helps shield temperature-sensitive components.
Most TTLW processes as we speak use laser wavelengths round 1 micron. Nonetheless, lasers working at larger wavelengths as much as 2 microns can be found, which permits engineers to weld clear components.
The warmth from the molten absorbent layer is performed to the transmission layer by means of direct contact. Melting and intermingling of the 2 layers create a robust bond between them.
In search of fast solutions on meeting and manufacturing subjects?
Attempt Ask ASM, our new sensible AI search software.
Ask ASM
Clamping is required to conduct warmth and to make sure a agency, gap-free weld on the interface. Key parameters for reaching a robust weld are the kind of near-infrared laser and its energy, in addition to welding velocity and clamping stress.
As a result of most resins are inherently clear to laser power, absorption have to be optimized by incorporating pigments and fillers, equivalent to carbon black, within the plastic. These components usually yield darker colours.
Insulin pump and steady glucose monitoring units are assembled with laser welding. Picture courtesy SABIC Polymers
Excessive-Quantity Manufacturing Instrument
Laser welding plastic parts presents medical machine producers a robust software for accelerating throughput, lowering prices, and guaranteeing high-quality, exact and constant joints. This know-how additionally presents the potential for high-volume manufacturing.
In comparison with becoming a member of with conventional adhesives, equivalent to tapes and glues, and mechanical fasteners, equivalent to screws and snap matches, laser welding is quicker, easier and extra reproducible. It additionally doesn’t require further provides that add prices and provide chain complexity.
Adhesive bonding of plastics, particularly below thermal stress, could be unreliable as a result of doubtlessly lengthy curing instances, susceptibility to environmental components and problem in eradicating extra adhesive. Laser transmission welding can overcome these limitations and supply sooner, stronger and cleaner joints which might be extra immune to warmth and environmental degradation.
This simultaneous through-transmission infrared laser welding system is designed for purposes that require quick throughput. Picture courtesy Emerson Electrical Co.
This technique can substitute snap matches in purposes the place a robust, hermetic and visually interesting bond is required, particularly in conditions the place snap matches are liable to failure or present inadequate sealing. Examples embrace digital housings, sensor housings and small containers for liquids.
In comparison with different thermal becoming a member of applied sciences, equivalent to ultrasonic welding, laser welding eliminates friction, vibration and different stresses that may trigger defects and scrap in delicate parts, notably in miniaturized digital components.
By-transmission laser welding helps make sure the cleanliness of medical units by avoiding particulate contamination from flashing and chemical contamination from adhesives.
When airtight sealing is required, equivalent to in wearable medical units like steady glucose displays, laser welding know-how can produce robust welds. These seals present an entire barrier in opposition to water, mud and oxygen ingress, for instance, allowing sufferers with a wearable machine to bathe and swim.
Highly effective Plastics
Specialty thermoplastics can improve the advantages of laser welding past meeting effectivity, velocity and precision. By selecting suitable specialty resins and copolymers reasonably than commodity plastics for laser-transparent and laser-absorbent layers, producers can add worth when it comes to aesthetics, particular efficiency attributes, sturdiness and regulatory compliance.
Whereas many plastics can be utilized in laser welding, not all ship equal worth. As a prerequisite, plastics paired in a laser-welded part should have the ability to present two components: one with near-infrared gentle transparency and one other that absorbs this gentle.
Whereas conventional plastics can supply these primary capabilities, specialty resins and copolymers can add fascinating properties to the half, serving to to amplify the advantages of utilizing laser welding know-how.
One essential property of some specialty thermoplastics is shade efficiency, which is a crucial side of laser welding. The medical machine business favors white and light-colored plastics that mirror near-infrared gentle, interfering with laser absorption. Luckily, progress is being made in growing light-colored and even white specialty supplies which might be suitable with laser welding know-how.
Main producers of specialty resins and copolymers supply further advantages past high-value merchandise. These benefits usually embrace a broad selection of laser-weldable grades, technical assist and experience, and design and course of optimization help.
The correct plastics can enhance the aesthetics, efficiency and sturdiness of medical units. Enhanced resin properties can even assist engineers handle present and future challenges, equivalent to more and more aggressive healthcare disinfectants, regulatory adjustments in sterilization strategies, and higher design complexity and miniaturization.

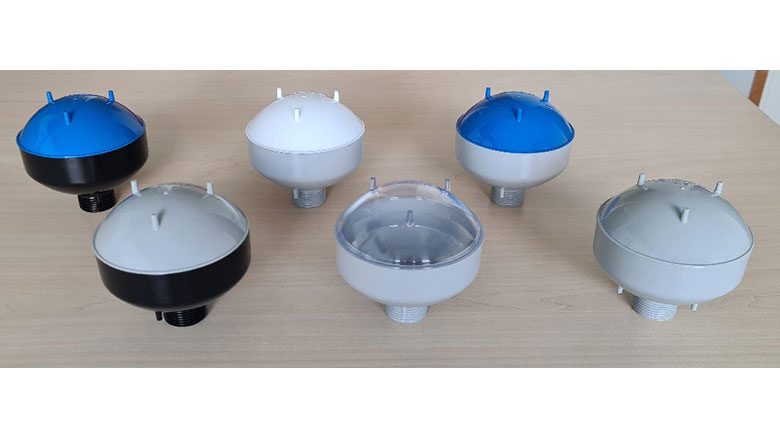

Specialty resins and copolymers are perfect for laser welding purposes. Picture courtesy SABIC Polymers
Compatibility Options
In the present day’s specialty resins and copolymers mix laser welding compatibility with a spread of focused options, together with:
- Excessive influence resistance. This property may also help medical machine enclosures and housings face up to day-to-day impacts, equivalent to bumps and drops, at dwelling or in busy healthcare environments. Toughness additionally permits plastics to switch or shield glass in machine purposes.
- Excessive chemical resistance. This property is more and more essential for medical units which might be topic to frequent cleansing with harsh healthcare disinfectants, which might trigger environmental stress cracking and shorten the helpful life of apparatus. Chemical resistance can be important for wearables equivalent to insulin pumps and steady glucose displays which might be worn across the clock, however could also be uncovered to uncovered to private care merchandise equivalent to sunscreen and bug repellent.
- Excessive-temperature resistance. Steam autoclaving continues to be a dominant sterilization technique, particularly in view of upcoming restrictions on ethylene oxide sterilization. Medical machine producers are more and more looking for supplies that may face up to the excessive warmth of steam autoclaving to allow them to reap the benefits of this selection.
- EMI shielding. Digital medical units usually require shielding in opposition to electromagnetic interference. Specialty polymer compounds with built-in shielding functionality can present this safety with out the necessity for secondary plating or coating operations.
- Flame retardance. Many digital medical units require safety in opposition to flame, smoke andtoxicity hazards. Sure high-heat polyetherimide resins mix near-infrared transparency with inherent flame retardance to satisfy these specs.
- Low put on and friction. Lubricated plastics are essential within the medical business, as a result of their capacity to cut back friction, improve efficiency and enhance the lifespan of units.
Many kinds of plastic luggage, containers are tube are produced with laser welding know-how. Picture courtesy SABIC Polymers
Colourful Challenges
As talked about above, aesthetics is an space the place specialty plastics can add worth to laser welding. Historically, resin colours appropriate for laser welding have been restricted to black and darker tones as a result of the components required to boost laser power absorption have usually been black.
Nonetheless, the healthcare business prefers to make the most of white or gentle colours for his or her purposes, as these colours connote cleanliness and are calming to sufferers. Impartial colours, particularly smooth whites and grays, present a balanced atmosphere.
This want presents a dilemma as a result of white or pale-colored polymers mirror reasonably than soak up laser gentle. For instance, white pigments like titanium dioxide (TiO2) mirror laser gentle within the near-infrared vary. This gentle scattering poses an issue for the highest transmissive half in addition to the underside absorbing half, making it tough to realize a robust weld.
Polymer producers are addressing this problem by incorporating specialised pigments and dyes that provide good laser power absorption whereas sustaining a light-weight shade. Different approaches embrace preserving the transmission layer as skinny as attainable, usually below a couple of millimeters, to reduce reflection; altering the loadings of TiO2; and adjusting the laser wavelength.
SABIC has achieved success with laser welding two matching supplies (laser transmissive and laser absorbing) which might be coloured very gentle grey and are each biocompatible HPX8R PC copolymer resins. The corporate can be within the technique of growing specialty plastics that may assist white-on-white welding mixtures.
Nonetheless, utilizing more difficult lighter colours additional restricts the laser welding processing window, which is proscribed by the laser’s energy output and achievable welding velocity. Along with the fabric’s optical traits, these capabilities in the end decide the utmost contour pathlength that may be welded.
As a result of laser-transparent and laser-absorbent plastics should be suitable with the method and one another, it is very important work with a provider that provides a broad portfolio of supplies. These resins ought to be optimized and examined for laser welding primarily based on compatibility research, laser transmission measurements and welding trials.
To fulfill particular utility necessities, the perfect provider ought to have the ability to alter materials formulations shortly, and ship custom-colored resins for branding, usability and security functions.
