Recognized for its ready-to-assemble, “flat-pack” furnishings designs, Swedish furnishings producer IKEA was based in 1943 and has been the world’s largest furnishings retailer since 2008.
The model title is an acronym of the initials of the names of Ingvar Kamprad, the corporate’s founder; Elmtaryd, the household farm the place Kamprad was born; and Agunnaryd, Kamprad’s hometown in southern Sweden.
Though IKEA originated in Sweden, its family merchandise and furnishings are manufactured in lots of international locations. Swedwood, an IKEA subsidiary, produces all the corporate’s wood-based merchandise, using greater than 16,000 individuals at 50 factories in 10 international locations. Collectively, the factories produce greater than 100 million items of furnishings yearly.
To automate meeting of a brand new product, IKEA turned to German firm Lehbrink, which makes a speciality of automated woodworking tools, and Swiss firm Robatech, which makes a speciality of automated dishing out expertise. Picture courtesy Robatech
One of many firm’s latest merchandise is the Pax 2.0 wardrobe, a foldable wall cupboard designed for quicker, simpler meeting, requiring much less area and no heavy lifting. It incorporates a one-piece, pre-glued again and facet panel that unfold like a e-book. “Wedge dowel” joints snap collectively with out the necessity for screws, reducing meeting time in half.
The imaginative and prescient behind Pax 2.0 is a wardrobe that may be assembled by one particular person with out instruments. Flat-pack furnishings with a folding again panel has been round for a while. IKEA took the idea a step additional by gluing the again panel on to the facet panels. The completed piece of furnishings is then unfolded like an accordion and arrange. The benefit of this design is that the again panel is connected to the facet panels from behind, so no area is misplaced within the depth of the wardrobe.
Nevertheless, for the idea to work, a tremendous strip of hot-melt polyurethane adhesive should be exactly utilized to the joints. To get the job executed, IKEA turned to German firm Lehbrink, which makes a speciality of automated woodworking tools, and Swiss firm Robatech, which makes a speciality of automated dishing out expertise.
Initially, IKEA examined the method of bonding the facet panels to the again panel on a transformed stand-alone machine from Lehbrink. With just some changes, the expertise labored flawlessly, even for the thicker facet panels. A big order adopted.
In search of fast solutions on meeting and manufacturing subjects?
Attempt Ask ASM, our new good AI search device.
Ask ASM
Automated System Bonds Panels
Lehbrink developed a continuous-flow manufacturing system particularly for the Pax 2.0 product. The system aligns the facet panels and again panel with millimeter precision—the largest problem of the mission. Every little thing else is a sequence of confirmed processes: reducing to the proper width, bonding and cooling.
Robatech equipped its RobaPUR 20 MOD melting unit, which melts the adhesive on-demand and feeds it to the applying head. A custom-made heated hose ensures that the adhesive maintains its ideally suited temperature all the way in which to the nozzle tip.
The RobaPUR 20 MOD delivers adhesive from 20-kilogram containers. Mild and consumption-dependent melting protects the adhesive properties even after prolonged interruptions.
The system aligns the facet panels and again panel with millimeter precision. Picture courtesy Robatech
The press cylinder is a closed, hermetic space. Because the adhesive reacts to moisture, the press cylinder is moreover outfitted with dry gasoline utility. The melting grill is heated individually from the adhesive reservoir. As soon as there may be sufficient melted adhesive within the reservoir for manufacturing, the melting grill is routinely switched off and actively cooled. This protects the remaining adhesive.
The adhesive provide may be refilled with out system interruption earlier than the block has been melted utterly. Because the melting grill continues to be lined by some adhesive, no dangerous adhesive vapors can escape when the cylinder is opened.

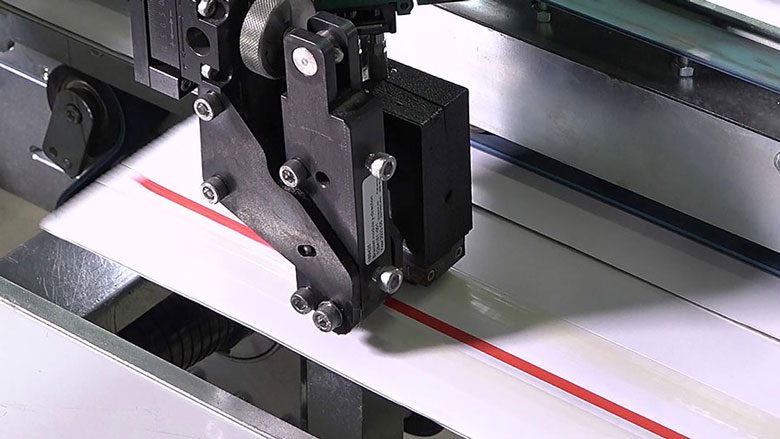

The spotlight of the dishing out system is Robatech’s Vivo 18 flat nozzle. Robatech tailored the nozzle’s geometry particularly for this utility to make sure exact and even utility of the adhesive.
